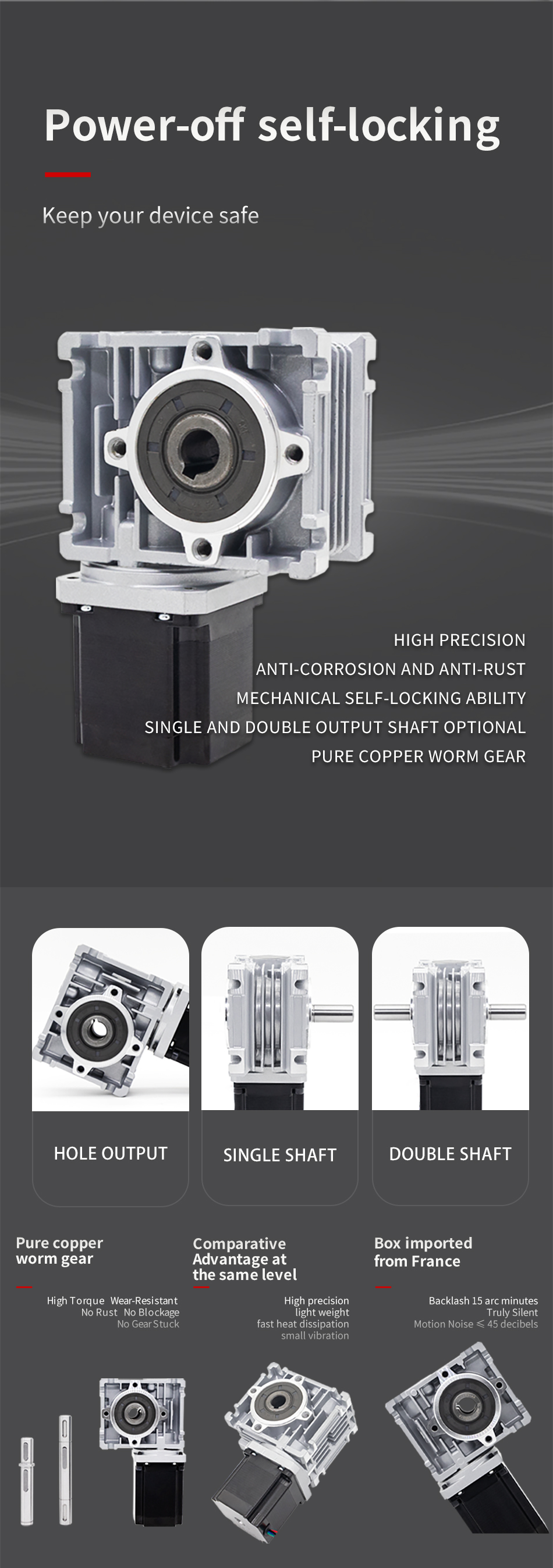

High Torque Single/Double Shaft Worm Gear Stepper Motor With Worm Gear Box Pure Copper

Warranty : 1year, 2 Year

Place of Origin : China

Brand Name : Umot

Model Number : Nema17/23

Phase : 2

Type : Hybrid, Reduction Motor

Material : Pure copper

Product name : Worm Gear Reducer

Maximum allowable radial load : 1350-1830N

maximum allowable shaft load : 270-366N

Backlash (Without Load) : 15-18

Packaging Details : Waterproof membrane + foam + carton / wooden box

MOQ : 2 pieces

Price : $75.90 - $104.50/pieces

Contact Now

High Torque Single/Double Shaft Worm Gear Stepper Motor With Worm Gear Box Pure Copper
High Torque Single/Double Shaft Worm Gear Stepper Motor With Worm Gear Box Pure Copper
Product Paramenters
High Torque Single/Double Shaft Worm Gear Stepper Motor With Worm Gear Box Pure Copper
Motor 42mm Nema17
Worm Gear Materil
Pure cupper
Backlash
15-18 Arc Minutes
Max.Radial Load
1350N
Max.Shaft Axial Load
270N
42x40mm Rated Voltage
1.5V
Current
1.5A
42x48mm Rated Voltage
3.8V
Current
1.2A
Reduction Ratio
5/ 7.5/ 10/ 15/ 20/ 25/ 30/ 40/ 50/ 60 :1
Motor 57mm Nema23
Worm Gear Materil
Pure cupper
Backlash
15-18 Arc Minutes
Max.Radial Load
1830N
Max.Shaft Axial Load
366N
57x55mm Rated Voltage
1.7V
Current
2A
57x76mm Rated Voltage
2.1V
Current
3A
Reduction Ratio
5/ 7.5/ 10/ 15/ 20/ 25/ 30/ 40/ 50/ 60/80 :1
Motor 86mm Nema34
Worm Gear Materil
Pure cupper
Backlash
15-18 Arc Minutes
Max.Radial Load
3490N
Max.Shaft Axial Load
698N
86x80mm Rated Voltage
1.36V
Current
4A
Reduction Ratio
5/ 7.5/ 10/ 15/ 20/ 25/ 30/ 40/ 50/ 60/80/100 :1
